ESAB Ruffian ES 150G Engine-Driven Welder
ESAB Ruffian ES 150G Engine-Driven Welder
ESAB Ruffian ES 150G Engine-Driven Welder
ESAB Ruffian ES 150G Engine-Driven Welder

ESAB Ruffian ES 150G Engine-Driven Welder Original price was: $3,100.00.Current price is: $2,700.00.

RUFFIAN ES 150G EDW Compact Engine Driven Welder ESAB welding logo

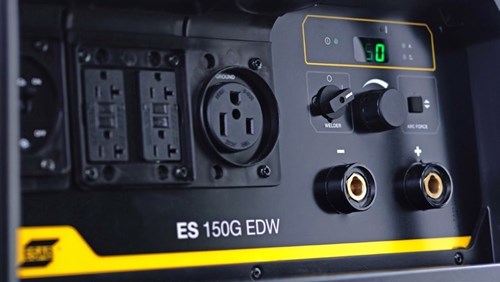

Intuitive, easy to use control panel allows you to control welding current independently from auxiliary output. Includes (4) 120 VAC and (1) 240 VAC receptacles.

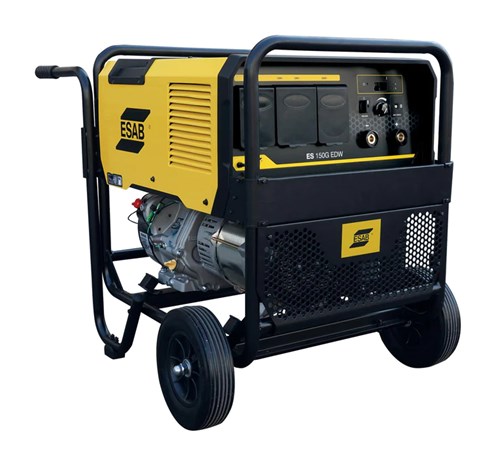

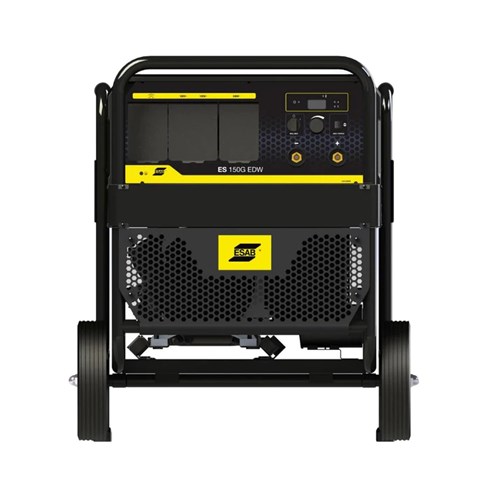

Ruffian ES 150G is a lightweight, powerful, all-in-one

DC Stick welding machine and AC generator combined. As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.

Quantity

Share with friends

Description

Features of the RUFFIAN ES 150G EDW

  • Advanced control over arc parameters, including adjustable Arc Force, to optimize the arc – especially with 6010 electrodes
  • Impressive power output of 150A at 60% duty cycle
  • Thermal protection for the welder and generator guaranteeing a long, useful life
  • Latest inverter technology ensures a stable and smooth stick arc that produces the cleanest welds
  • Trusted Kohler gas engine meets a high standard of power and reliability
  • Fuel-efficient 5-gallon gas tank and engine hour meter
  • Auxiliary generator output voltage is independent from the welding current, allowing simultaneous use of electrical tools without worrying about adjustments to the welder settings
  • Four 120 VAC, 20 A GFCI receptacles and one 240 VAC (6-50R) receptacle, all protected by a circuit breaker and covers
  • Easy to maneuver through the job site with large industrial-grade wheels that provide high ground clearance; and ergonomic, removable handles that distribute weight evenly
  • 3-year warranty by ESAB on welder/generator and 3year warranty by Kohler on engine Visit esab.com for more information.

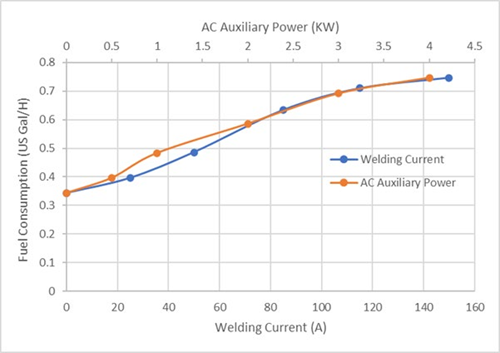

Fuel Consumption DataESAB Ruffian ES 150G EDW Fuel Consumption Chart

  • Fuel consumption curves show the typical fuel use under welding or auxiliary generator loads
  • 5.0 US gal. (18.93 L) fuel capacity
  • Welding at 150 amps or under a continuous load of 4,000 watts of auxiliary generator power, Ruffian 150 will run for approximately 6.5 hours

Industries

  • Repair and Maintenance
  • Agricultural Equipment
  • Light Fabrication
  • Civil Construction
  • Hobbyist
  • Mobile Equipment
Shop all ESAB products and engine-driven welders available online from Welders Supply.

Highlights

  • Advanced Arc Control: Adjustable Arc Force delivers optimized arc performance, especially with 6010 electrodes
  • Powerful Weld Output: Delivers 150A at 60% duty cycle for demanding Stick welding jobs
  • Reliable Thermal Protection: Built-in safeguards extend the life of both the welder and generator
  • Clean, Stable Arc: Inverter technology produces a smooth, consistent arc for high-quality welds
  • Trusted Engine Power: Kohler® gas engine offers dependable performance and meets professional standards
  • Fuel Efficient Design: 5-gallon tank and engine hour meter help maximize runtime and monitor usage
  • Dual Function Without Interference: Generator output is independent of welding current—power tools won’t disrupt welding settings
  • Versatile Power Options: Includes four 120V GFCI outlets and one 240V outlet with full circuit protection
  • Jobsite Mobility: Large wheels and ergonomic removable handles make transport easy across rough terrain
  • Warranty Protection: Covered by a 3-year ESAB warranty on the welder/generator and 3-year Kohler warranty on the engine
