Description

What’s Included

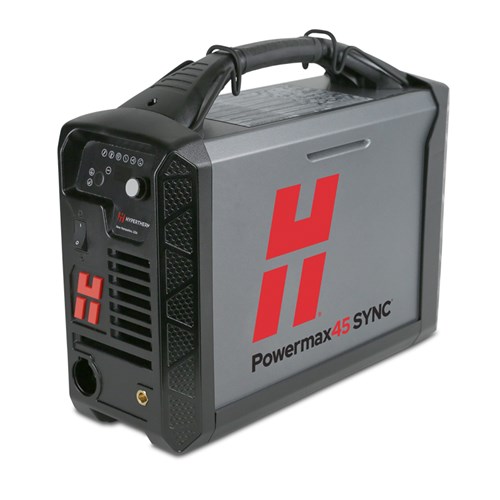

Powermax45 SYNC power supply (no CPC port)
Operator and Safety Manuals

Not included: SmartSYNC torch, SmartSYNC consumables

Cut Capacity

Recommended: 5/8″ @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8″ @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2″ (12mm)

Max Removal Gouging – Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12″ D x 0.26″ W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Highlights

Powerful Cutting Capacity:
Cuts 5/8″ at 20 ipm and severs up to 1-1/8″ at 5 ipm, suitable for heavy-duty industrial tasks.
480V Industrial Power:
Operates at 480V (3-PH), providing reliable performance for demanding, high-intensity cutting applications.
Quick Change Consumables:
Fast cartridge swaps reduce downtime, keeping productivity high.
Efficient Inventory Management:
Cartridge data analytics optimize consumable usage, reducing waste.
Reliable Arc Starts:
SpringStart™ technology ensures consistent, smooth ignition for superior cut quality.
Rugged Durability:
Built to withstand tough industrial environments, ensuring long-term reliability.

Plasma Cutting Applications:

Drag cutting: Maintain constant torch-to-work distance by resting the nozzle directly on the workpiece for consistent, high-quality cuts.
Bevel cutting: Angle the torch to create precise beveled edges for weld preparation or aesthetic finishes.
Gouging: Remove material from a workpiece surface using a specialized gouging tip and higher amperage for weld removal or defect correction.
Flush cutting: Sever attachments or protrusions at their base to create a smooth, flush surface with the main workpiece.
Extended reach cutting: Utilize longer torches or robotic arms to access hard-to-reach areas or cut large, complex structures.
Fine feature cutting: Employ lower amperage and specialized consumables to produce intricate designs or small-diameter holes with minimal kerf width.

Powermax45 SYNC Benefits:

Simplify Operations

Streamlined system minimizes training and troubleshooting costs.
Reduced downtime with quick consumable changes and elimination of premature disposal.
Cartridge usage data aids in optimizing cutting operations and managing inventory.

Easy to Use

Laser-marked, color-coded cartridges prevent mix-ups.
RFID-enabled SmartSYNC torches auto-adjust amperage and mode, eliminating setup errors.
End-of-life detection ensures timely cartridge replacement.
Flexible torch lead reduces operator fatigue, ideal for manual and robotic use.

Maximize Performance

Easily swap torches and cartridges for various cutting and gouging applications.
Optimized cartridge design doubles lifespan in handheld and maintains quality in mechanized use.
On-torch controls allow quick amperage adjustments and cartridge changes without returning to the power supply.

Industry Leading Reliability

SmartSYNC torches designed for rugged, industrial environments.
SpringStart™ technology ensures consistent torch starting.
Industry-leading reliability minimizes production downtime.

SmartSYNC Torches

SmartSYNC Consumables
