Description

What’s Included

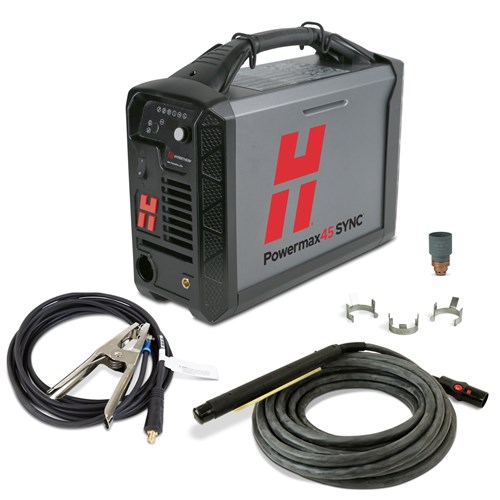

Powermax45 SYNC power supply w/ CPC port
180° machanized SmartSYNC torch
25ft torch lead
25ft work clamp
10ft power cable
(1) Mechanized cutting cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8″ @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8″ @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2″ (12mm)

Max Removal Gouging – Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12″ D x 0.26″ W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Highlights

Enhanced Precision:
180° machine torch enables accurate cuts at any angle, ideal for complex projects.
Extended Reach:
25-foot lead offers flexibility for large-scale tasks, reducing repositioning needs.
Efficient Cartridge Life:
SmartSYNC cartridges last up to 2x longer, reducing downtime and consumable costs.
Quick CNC Setup:
CPC port enables seamless integration with auxiliary equipment for mechanized cutting.
Reliable Ignition:
SpringStart™ technology ensures consistent starts for high-quality cuts.
Error-Free Setup:
RFID-enabled SmartSYNC automatically configures settings, preventing setup mistakes.
Multipurpose Cutting:
Easily switch between cutting, gouging, and flushing for versatile applications.
Rugged Durability:
Built for harsh environments, ensuring long-term industrial performance.
Flexible Power Input:
Operates on 200-240V, providing reliable performance across applications.
Inventory Optimization:
Track cartridge usage to manage inventory and improve cutting efficiency.

Plasma Cutting Applications:

Drag cutting: Maintain torch-to-workpiece contact for faster, more accurate cuts on thin materials.
Bevel cutting: Angle the torch to create chamfered edges for weld preparation or aesthetic finishes.
Gouging: Remove material selectively using a specialized nozzle and higher amperage for weld repair or plate edge preparation.
Flush cutting: Eliminate protrusions by cutting flush to a surface using specialty consumables and techniques.
Extended reach cutting: Access hard-to-reach areas with extended torch bodies or robotic arms for complex geometries.
Fine feature cutting: Achieve intricate designs and tight tolerances using lower amperage and precision plasma sources.

Powermax45 SYNC Benefits:

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 – we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Power Supply Only (200-240V) #088570
Powermax45 SYNC Power Supply Only (480V) #088573

75° Handheld Torch, 20ft Lead (230V) #088560
75° Handheld Torch, 50ft Lead (230V) #088561

Power Supply w/ CPC Port (200-240V) #088571

CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562
CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563
CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564

CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580
CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581
CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582
CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583

Power Supply w/ CPC & Serial Port (200-240V) #088572

CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584
