Description

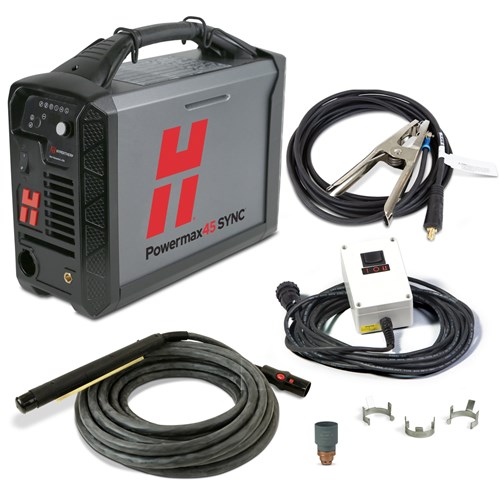

What’s Included

Powermax45 SYNC power supply w/ CPC port
180° machanized SmartSYNC torch
25ft torch lead
25ft work clamp
10ft power cable
(1) Mechanized cutting cartridge
Remote control
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8″ @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8″ @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2″ (12mm)

Max Removal Gouging – Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12″ D x 0.26″ W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Highlights

Cutting Power:
Cuts 5/8″ at 20 ipm and severs up to 1-1/8″ at 5 ipm, delivering high performance for tough materials.
Enhanced CNC Connectivity:
CPC port allows seamless integration with auxiliary equipment, expanding application versatility.
Remote Control Convenience:
Included remote enables easy adjustments and control, enhancing operational flexibility.
Mechanized Cutting:
180° machine torch provides accurate cuts from any angle, ideal for intricate and complex projects.
Extended Reach Leads:
25-foot lead offers flexibility for larger tasks, reducing repositioning needs.
Consistent, Reliable Ignition:
SpringStart™ technology ensures consistent, smooth starts for every cut.
Fast, Easy Setup:
RFID-enabled SmartSYNC technology auto-adjusts settings, minimizing setup errors and training time.
Rugged Design:
Engineered for tough environments, ensuring durability and reliable, long-term performance.

Plasma Cutting Applications:

Drag cutting: Keep the torch tip in direct contact with the metal for precise, smooth cuts.
Bevel cutting: Angle the torch to create beveled edges, ideal for weld preparation and complex joints.
Gouging: Use the torch to remove excess material or welds by carving grooves into the metal.
Flush cutting: Cut metal components flush to the surface with minimal standoff, leaving a clean finish.
Extended reach cutting: Access hard-to-reach areas with a longer torch to cut in tight spaces.
Fine feature cutting: Execute intricate cuts on thin materials with high precision and minimal heat distortion.

Powermax45 SYNC Benefits:

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 – we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Power Supply Only (200-240V) #088570
Powermax45 SYNC Power Supply Only (480V) #088573

75° Handheld Torch, 20ft Lead (230V) #088560
75° Handheld Torch, 50ft Lead (230V) #088561

Power Supply w/ CPC Port (200-240V) #088571

CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562
CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563
CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564

CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580
CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581
CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582
CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583

Power Supply w/ CPC & Serial Port (200-240V) #088572

CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584
