Description

What’s Included

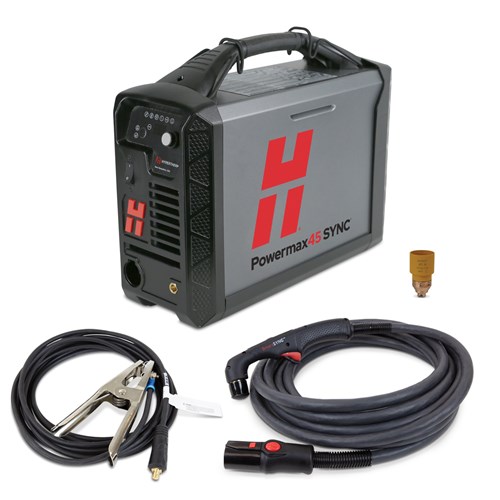

Powermax45 SYNC power supply w/ CPC port
75° handheld SmartSYNC torch
20ft torch lead
20ft work clamp
10ft power cable
(1) 45A Drag Cut SmartSYNC Cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8″ @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8″ @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2″ (12mm)

Max Removal Gouging – Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12″ D x 0.26″ W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Highlights

CNC Ready:
CPC port allows seamless integration with auxiliary equipment for mechanized cutting.
Efficient Cartridge Life:
SmartSYNC cartridges last up to 5x longer, reducing downtime and consumable costs.
Error-Free Setup:
RFID-enabled SmartSYNC torches auto-adjust settings, minimizing setup errors.
Extended Reach:
50-foot lead provides flexibility for large projects, reducing repositioning needs.
Enhanced Precision:
75° handheld torch enables accurate cuts at various angles, ideal for detailed work.
Reliable Ignition:
SpringStart™ technology ensures consistent starts, delivering high-quality cuts.
Versatile Cutting Modes:
Easily switch between cutting, gouging, and flushing for diverse applications.
Rugged Durability:
Built for industrial environments, ensuring long-term reliability.

Plasma Cutting Applications:

Drag Cutting: High-speed manual cutting for thick metals. Achieves 80% faster cutting rates compared to oxy-fuel on 6mm mild steel. Ideal for general fabrication and HVAC applications
Bevel Cutting: Allows for the creation of angled cuts on materials, making it ideal for precise edge finishes, weld preparation, and the fabrication of complex designs
Max Removal Gouging: Aggressive metal removal at rates up to 3.4 kg/hr. Produces deep gouge profiles up to 5.5mm depth, ideal for weld preparation and heavy-duty material removal
Max Control Gouging: Precise metal removal with gouge depth control within 0.5mm accuracy. Suitable for detailed work and light metal washing, removing up to 1.8 kg/hr of material
Flush Cutting: Specialized 45-degree cutting for trimming and finishing. Enables cutting within 3mm of base materials, reducing secondary operations by up to 20%
Extended Reach Cutting: Allows for greater access to hard-to-reach areas, making it ideal for cutting larger or more intricate workpieces
Fine Feature Cutting: Precision plasma cutting with kerf width as narrow as 1.2mm. Reduces heat-affected zone by up to 30% compared to standard cutting. Perfect for intricate metal art and detailed fabrication
Mechanized Cutting: Automated CNC plasma cutting for up to 50% increased productivity. Suitable for table-based operations and portable automation

Powermax45 SYNC Benefits:

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 – we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Power Supply Only (200-240V) #088570
Powermax45 SYNC Power Supply Only (480V) #088573

75° Handheld Torch, 20ft Lead (230V) #088560
75° Handheld Torch, 50ft Lead (230V) #088561

Power Supply w/ CPC Port (200-240V) #088571

CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562
CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563
CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564

CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580
CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581
CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582
CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583

Power Supply w/ CPC & Serial Port (200-240V) #088572

CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584
