Description

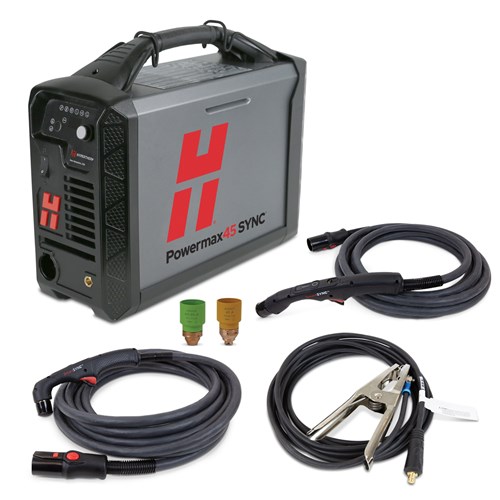

What’s Included

Powermax45 SYNC power supply
75° handheld SmartSYNC torch w/ 20ft lead
15° handheld SmartSYNC torch w/ 25ft lead
20ft work clamp
10ft power cable
(1) 45A Drag Cut SmartSYNC Cartridge
(1) 45-85A Max Control SmartSYNC Cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8″ @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8″ @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2″ (12mm)

Max Removal Gouging – Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12″ D x 0.26″ W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Highlights

Powerful Cutting Capacity:
Cuts 5/8″ at 20 ipm and severs up to 1-1/8″ at 5 ipm, handling tough materials efficiently.
Dual Torch Angles:
Includes 75° and 15° handheld torches for optimal flexibility in varied cutting applications.
Enhanced Connectivity:
CPC port enables seamless integration with auxiliary equipment, expanding usage options.
Extended Reach:
Includes both 20ft and 25ft leads, offering movement flexibility for projects of any size.
Efficient Cartridge System:
Comes with Drag Cut and Max Control cartridges, supporting diverse cutting and gouging needs.
Reliable Ignition:
SpringStart™ technology ensures consistent, smooth starts every time.
Quick Setup:
RFID-enabled SmartSYNC tech auto-adjusts settings, reducing setup errors and training time.
Industrial Durability:
Built for rugged environments, ensuring long-term reliable performance.

Plasma Cutting Applications:

CNC Plasma Cutting: Automated precision for table-based operations, offering flexibility in portable automation and efficiency
Manual Plasma Cutting: High-speed hand torch operation for straightforward applications, commonly used for general cutting tasks
Precision Plasma Cutting: Designed for detailed cuts with narrow kerf width, minimal dross, and reduced heat-affected zone
Bevel Cutting: Enables cutting close to base materials with a 45-degree angle, useful for trimming and finishing
Heavy Gouging: For aggressive metal removal with deep gouge profiles and extensive metal washing, ideal for heavy-duty material removal
Precision Gouging: Provides controlled metal removal with shallower gouge profiles and light metal washing, suited for detailed gouging tasks

Powermax45 SYNC Benefits:

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 – we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Power Supply Only (200-240V) #088570
Powermax45 SYNC Power Supply Only (480V) #088573

75° Handheld Torch, 20ft Lead (230V) #088560
75° Handheld Torch, 50ft Lead (230V) #088561

Power Supply w/ CPC Port (200-240V) #088571

CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562
CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563
CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564

CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580
CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581
CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582
CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583

Power Supply w/ CPC & Serial Port (200-240V) #088572

CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584
